How do I make/customize arrow types?

0 votes

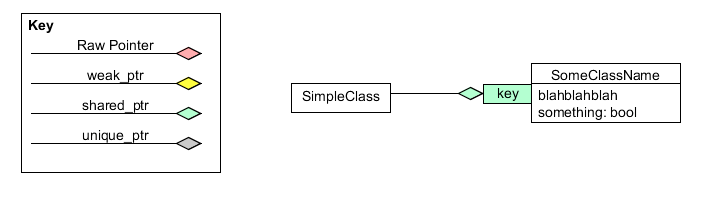

I want to make UML arrows with color codes, like in the illustration below.

I can find properties to change the Line Color, which also changes the solid-diamond to the same color.  But How can I color the hollow part of the diamond?

asked Mar 5, 2016 in Help by JDĹ‚ugosz (120 points)
retagged Mar 7, 2016 by thomas
I've added a feature request for this type of thing:
http://yed.yworks.com/support/qa/9759/support-user-defined-arrow-heads

1 Answer

0 votes
The inside of the diamond cannot be colored separately.
answered Mar 7, 2016 by thomas [yWorks] (23,660 points)
