Different z-index handling for different edge types

0 votes

We realised a different handling of the z-order for labels, dependent on the selected node.

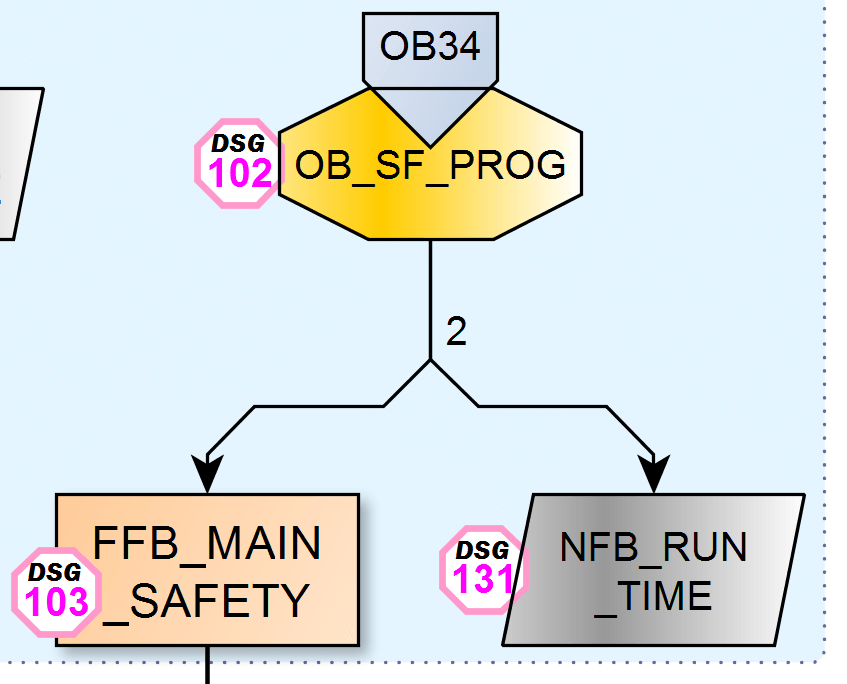

On a rectangular node the label is painted entirely in over the node. Whereas when other nodes are selected, the labels are still in front, with exception of the border line of the very node, which supossed to be completely unterneath as well. See this strange behavior in the cutout below(e.g. DSG label).

We have no explanation for this and searching through the forum hasn't brought up any question concerning this issue.

Thanks for help in this matter.


in Help by (610 points)
retagged by

1 Answer

0 votes
All nodes from the "Shape Nodes" and "Group Nodes" palette sections paint their border over their labels. All other nodes do not. There is currently no way to change the "Shape Nodes" and "Group Nodes" behavior in this regard.
