How to optimize system to remove cross lines?

0 votes

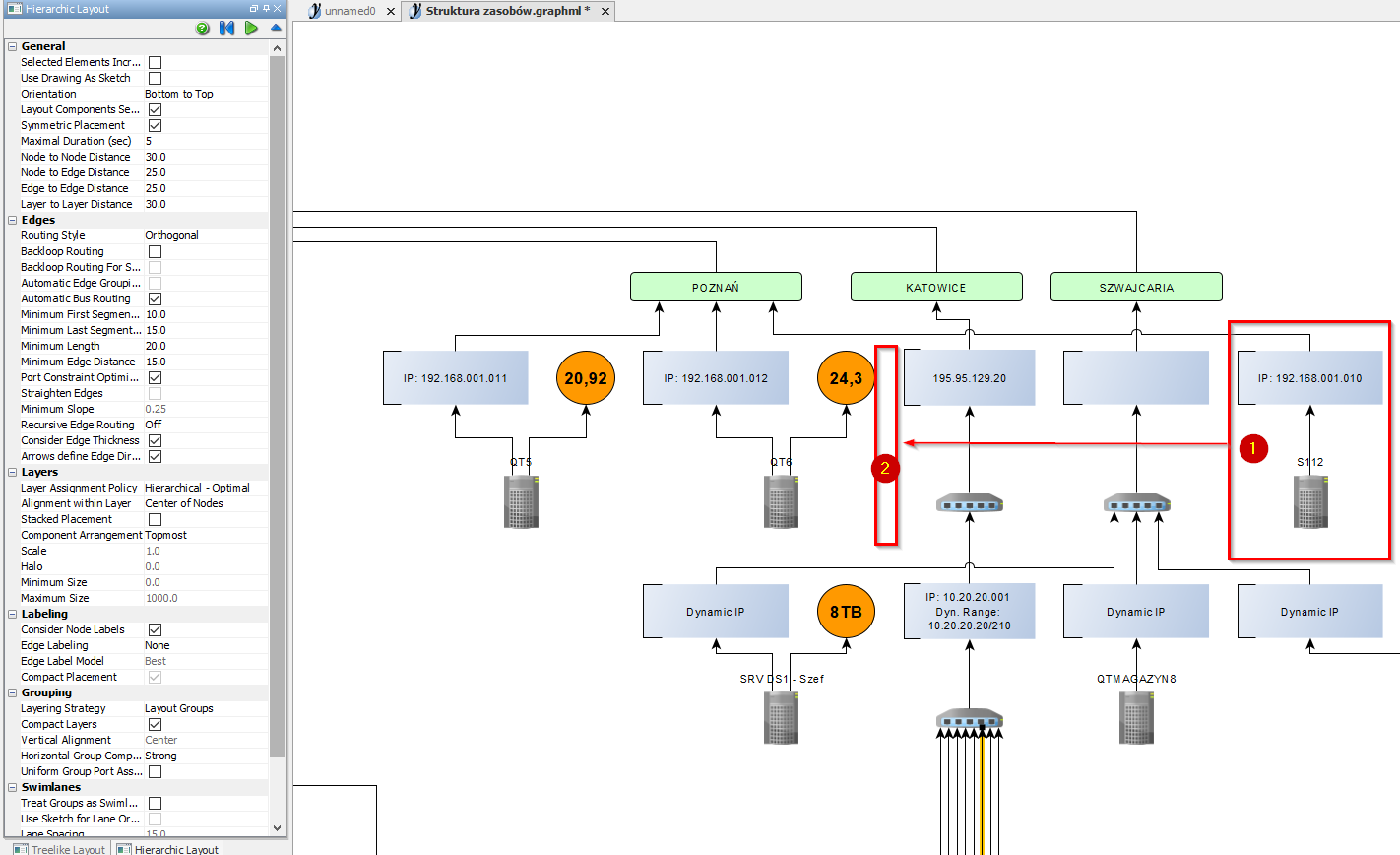

I want to remove some crossing in my diagram, but i don't know which options i must set. How to automatically put group (1) in place (2). After this system do not cross some lines. Options and situation is on picture below.

asked Sep 6 in Help by jacekkolcon (120 points)

1 Answer

0 votes
yEd's layout algorithms produce "good" results but cannot guarantee perfect results. In your case, the layout algorithm needs to solve a "crossing minimization" problem. Unfortunately, in the general case "crossing minimization" is a very, very difficult problem to solve, i.e. the algorithm would often have to run for a very, very long time if it was required to always find the optimal solution. To prevent that very, very long runtime, the algorithm uses a heuristic that produces good but possibly non-optimal results - as in your case.

I suggest manually moving group (1) to position (2), enabling "Use Drawing as Sketch", and running the algorithm a second time.
answered Sep 6 by thomas.behr [yWorks] (126,540 points)
