Honor levels in multi-hierarchy tree alignment?

0 votes

Good day. I am trying to autoalign a tree with 3 hierarchies. Some of the leaves are also connected to other leaves of a different hierarchy.

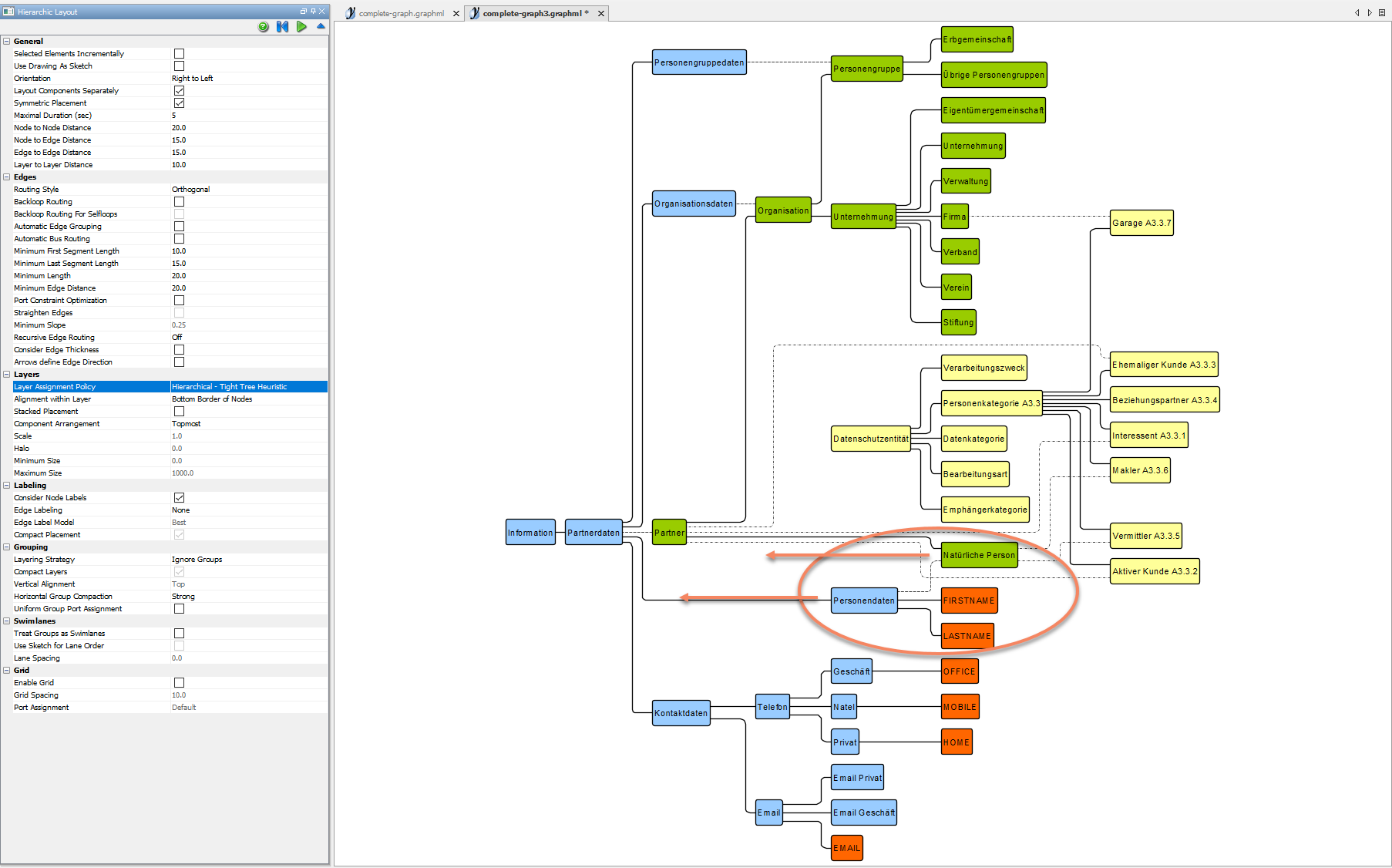

I there a way to tell the optimizer to honor the hierarchy level? In the attached imaged I indicated what I would expect.

Thanks!



asked Jul 1 in Help by adrian.meyer (120 points)
recategorized Jul 1 by thomas.behr

1 Answer

0 votes

Change "Layer Assignment Policy" to "Hierarchical Optimal", enable "Arrows define Edge Direction", and ensure that the edges that connect leaves to other leaves have no arrows and all other edges have arrows at their target ends.

answered Jul 1 by thomas.behr [yWorks] (127,030 points)
