How do I set an object to be a specific size? like 1.25 inches on grid and when printed?

0 votes
I'd like to create an 8-1/2 by 11 page with several circles of specific sizes to use as a templete. I don't know how to set the grid to equal inches istead of "points". Thanks.
asked May 8, 2015 in Help by rse (120 points)

1 Answer

0 votes

Java works with 72dpi. I.e. at zoom factor 1, node size of 90 x 90 in yEd will result in printout size of 1.25in x 1.25in and yEd grid distance of 90 will result in printout grid distance of 1.25in.

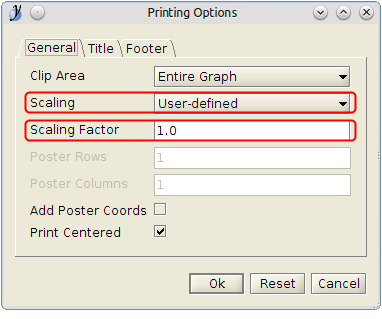

In this context, the zoom factor is determined by settings "Scaling" and "Scaling Factor" in yEd's print options:

answered May 8, 2015 by thomas.behr [yWorks] (126,540 points)
