Where is the option "Compact Placement"?

0 votes

Hello Thomas,

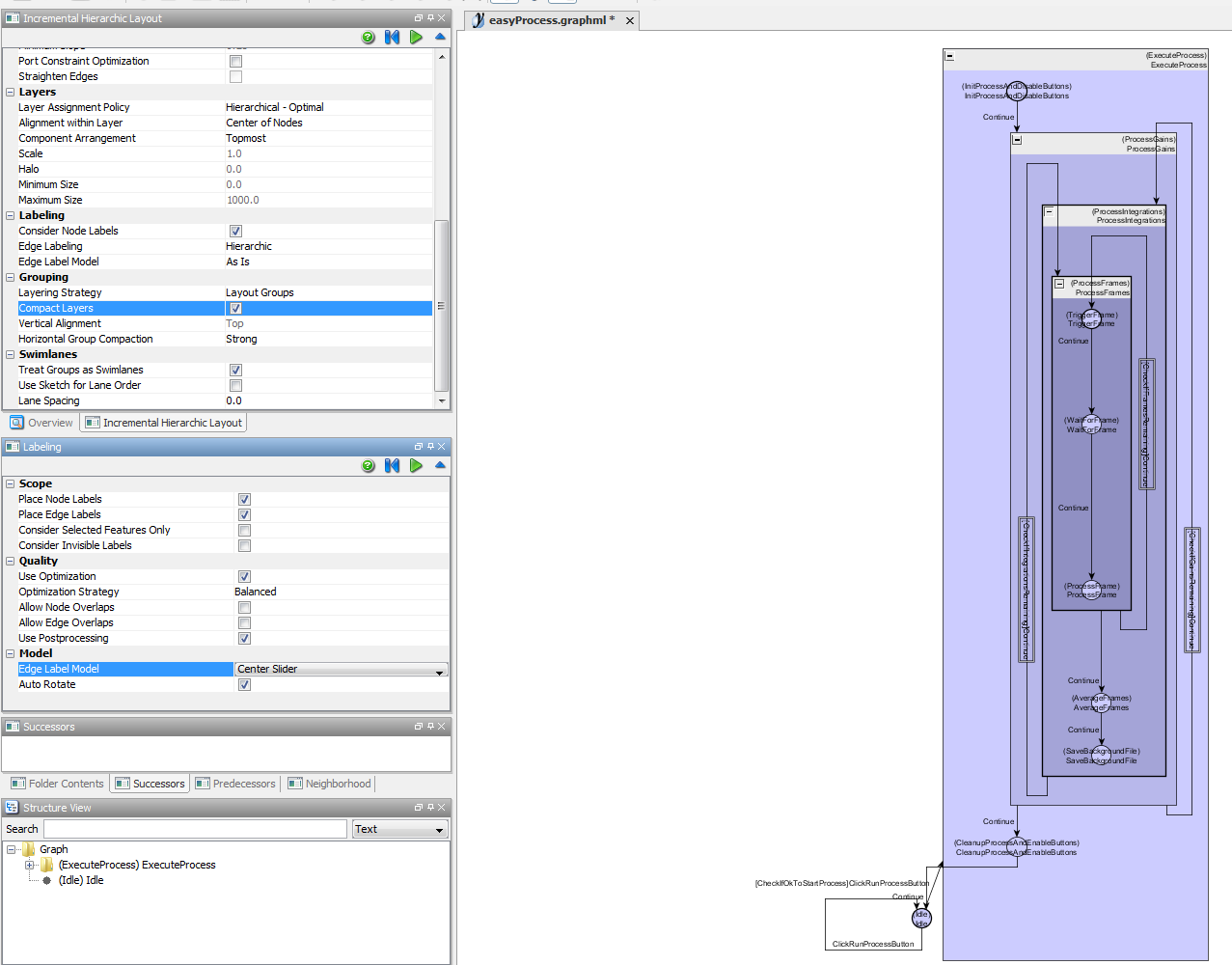

Thanks for your help. However I could not find where to select the option "Compact Placement" (from step 3.3).  You can see my options and the resulting layout in the screenshot below (scroll to the right for the layout).

How do I offset the vertical labels so the edge is not running through all the text?

And how do I get the Idle state (bottom left) to be pushed up vertically so that everything can scale larger in the vertical direction? (the Idle label is making everything taller)




Thanks,

Neville



in Help by

1 Answer

0 votes
Seems like you are using an old version of yEd. Option "Labeling" - "Compact Placement" was introduced in yEd 3.12. Please upgrade to the latest version yEd 3.12.2.

Preferred Placement has also an option "Side of Edge" (see the corresponding screenshot in my previous answer). Choose "Left or Right" to prevent labels from being placed on edges.

The top-to-bottom order of nodes is determine by the directions of the edges connected to them. From your screenshot it seems like there was only one incoming edge at the idle state node during layout. Consequently the idle state node will be placed below the source node of its incoming edge. If you replace the incoming edge with an outgoing one, the idle state node will be placed above the target node of its single edge. Alternatively, you can try running the layout algorithm twice. The first time with your current settings. Then manually move the idle state node upwards to a better place. Now run the hierachic layout algorithm a second time but with option "General" - "Use Drawing As Sketch" selected.
by [yWorks] (136k points)
edited by
That worked.  Thank you!
