Missing node

Question

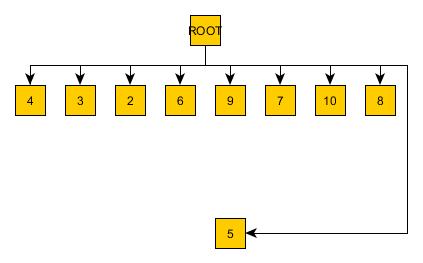

Thanks that worked great as show below, apart from node 5. I require node 5 to act similar to the root node where it routes or groups in similar fashion but i cant seem to get it in exactly the same way as the root node and the rest of the nodes.

Node 5 is connected to nodes 2-10 but it is not displayed the same way as the root node.











Answer 1

I take it you used "Layout" -> "Edge Routing" -> "Orthogonal Bus-style" to achieve the result in your screenshot. To create several buses, choose "Defined by Color" for setting "Bus Membership" and color your edges accordingly.

=>
