Wrong label placement after using BPMN-Layout

0 votes

Hi,

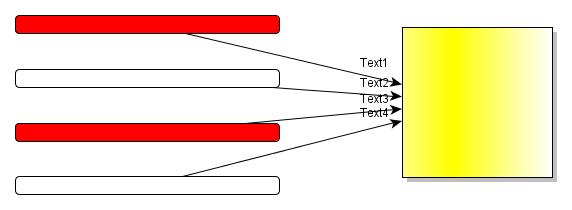

I created a new graph like the first one and selected  the "Placement" to "6Pos: Target Head".

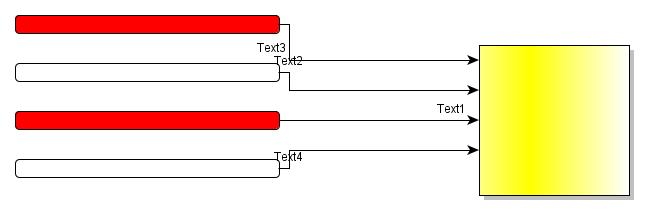

After using the BPMN-Layout the most label's lost their positions though the Placement holds the value of "6Pos: Target Head".

Could you help me to solve this problem?



best regrads

Martin



PS: Sorry for my bad english.

in Help by
edited

1 Answer

0 votes
This answer is very late, so you've probably solved it :-)

Have you also checked the "Preferred placement settings"? When you choose "Along edge: at target" you get the situation you want imho.
