How to stack with a Hierarchical layout (top-down)

+1 vote

Hi,

I want a Hierarchical layout (top-down)

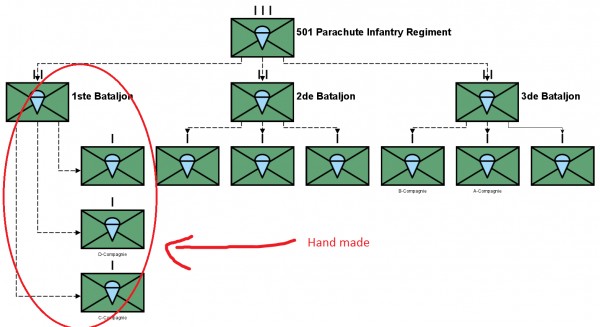

But the last nodes have to be stacked as in example.

How to do?

in Help by

1 Answer

0 votes

You may use "Layout" -> "Tree" -> "Directed" to achieve the desired arrangement. In the layout settings dialog, ...

  • go to tab "Directed",
  • enable "Orthogonal Edge Routing",
  • set "Port Style" to "Border Distributed",
  • set "Child Placement Policy" to "Leaves stacked right", and
  • use default values for all other settings.
by [yWorks] (161k points)
