How can I create a Package node?

+2 votes

I wants to use a Package Node (http://en.wikipedia.org/wiki/Package_%28UML%29)

My only need is that it should be a group (like Group Nodes), and have that special background for the label, and the label to be positioned on its background.

I tried modifiing the Group Nodes, since functionally they are very similar, but I couldn't position the dossier's label background icon to where it belongs.  Then I tried to create a new Node type from image, but it does not behave like a package, and I cannot position the label into it's place.

Are there any existent Nodes I could use, or is there a way to create such a Node?

I tried this solution too: http://yed.yworks.com/support/qa/151/create-symbols

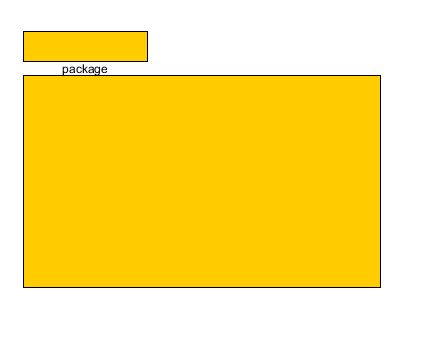

I created a larger rectangle and a smaller one. I make the smaller one as a label of the larger one. But if I put a text into the smaller one, it moved away from the largerone. See the result:

related to an answer for: How can I use my own node symbols in yEd?
asked Oct 2, 2012 in Help by anonymous
edited Oct 2, 2012

1 Answer

+2 votes

Use a normal group node and change the label's "Size" property to "Fit Content", its "Border" to the desired color (e.g. black), its "Placement" to "SmartFree: Anywhere", and drag the label out of the node itself until it snaps to the node's upper left corner.

Sample graph.

answered Oct 2, 2012 by thomas.behr [yWorks] (122,690 points)
