Lines invisible when Shape is in the background ??

0 votes

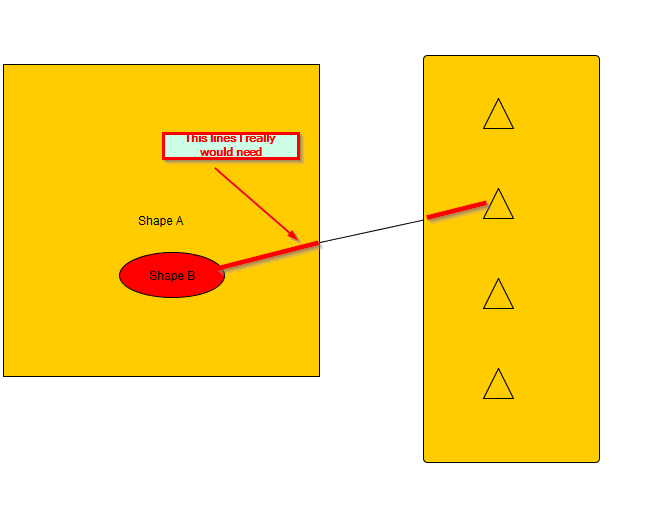

When I connect e.g. Shape-B (from the left) with a triangle, the line is only visible between the two background shapes. Can I make them visible from Shape-B until the triangle?

related to an answer for: Snap lines dont "see" objects when other objects are in between or on other objects
in Help by

1 Answer

0 votes

Do not place "normal" nodes above other "normal" nodes but group your nodes properly.

Sample diagram with grouping.

by [yWorks] (161k points)
