Is my UML palette missing many symbols?

0 votes

Using yEd 3.17.1 java version on Windows 10 (double-click on yed.jar). Thanks.

in Help by

1 Answer

0 votes

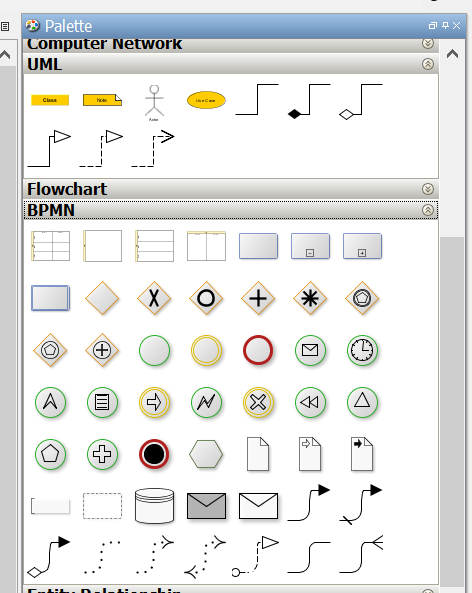

No, it is not. yEd's UML palette sections does indeed feature only those elements shown in the above screenshot.

Why are you asking?
by [yWorks] (161k points)
I was interested in using yEd to draw UML state and activity diagrams, but could not find the symbols in the palette. I thought I saw more symbols than these :-) I will make do with symbols from other palettes. Thanks.
by

It is possible to import additional symbols into yEd. Please see How can I use my own node symbols in yEd? for detailed information.

by [yWorks] (161k points)
