[bug?] Label placement "Centered" does not work with short edges

0 votes

Using label placement "Centered" works on longer edges, but not with shorter edges.
yEd 3.16.1 on Windows 10 1511 64-Bit with JRE 8u102

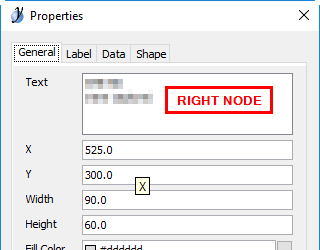

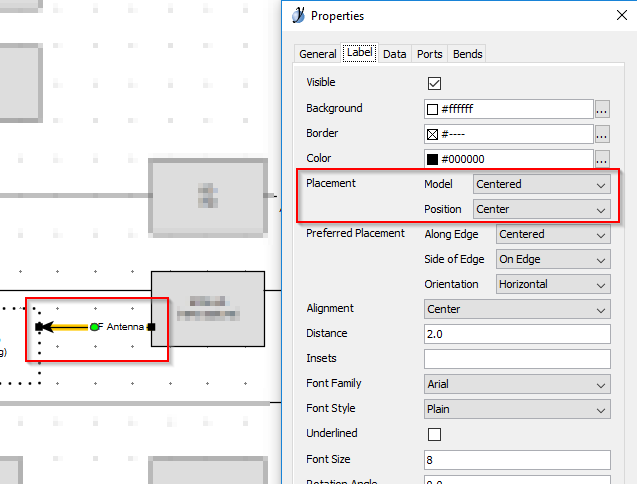

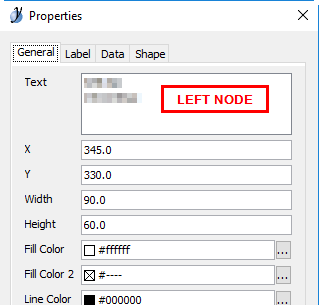

In this case the label reads "RF Antenna":

Kind regards
Maddes

asked Sep 24, 2016 in Help by maddes (290 points)
edited Sep 24, 2016 by maddes

1 Answer

+1 vote

Best answer
The "Centered" edge label model centers the label on the longest edge segment following the premise that the longest segment is the most important segment. This model works best for straight-line edges without any bends.

E.g. in your first screen shot, there is an unecessay bend in the selected edge. Remove that bend and the edge label will be placed in the center of the single edge segment.
answered Sep 26, 2016 by thomas.behr [yWorks] (126,540 points)
selected Sep 26, 2016 by maddes
